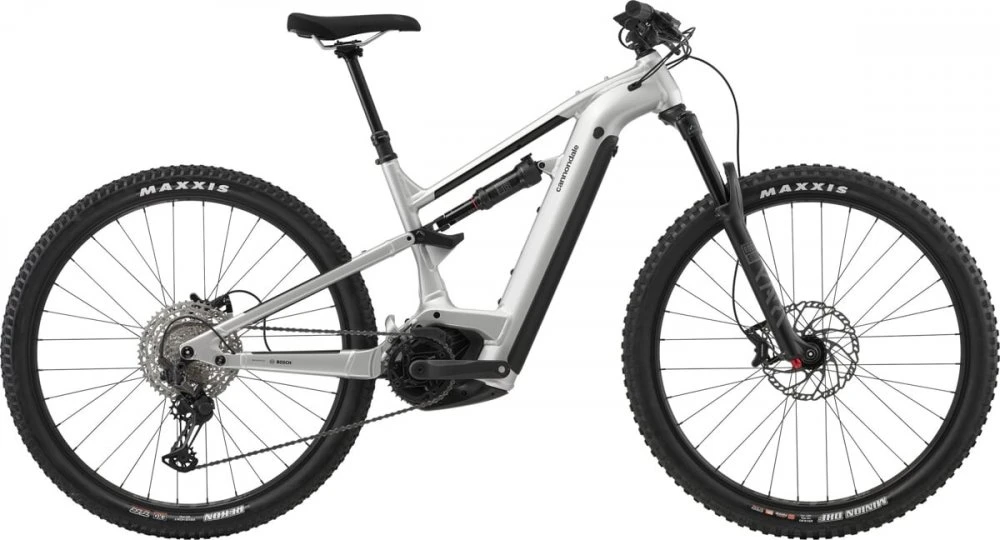

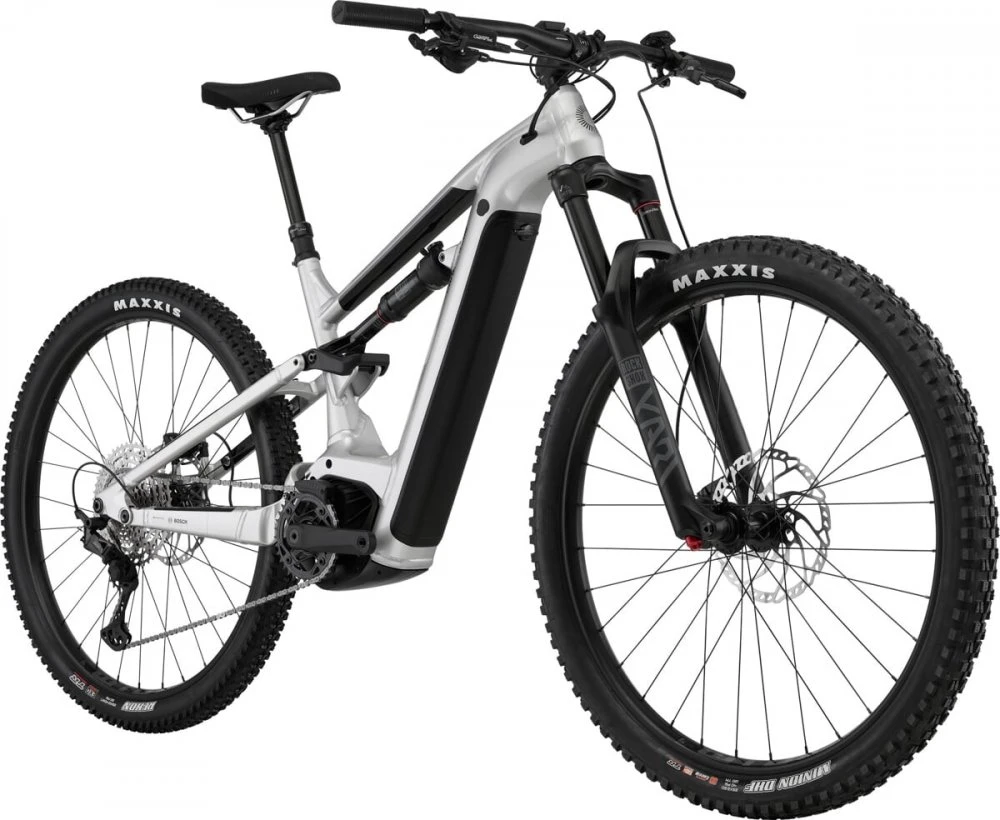

The Cannondale Mottera is a full-suspension electric mountain bike with a powerful Bosch Performance Line CX engine.
- center motor Bosch Performance Line CX with a torque of 75 Nm and a power of 250 W
- integrated Bosch PowerTube 750 Wh battery
- maximum support up to 340%
- Bosch Kiox control unit with LCD display
- air suspension with 150 mm strokes
- wheels with a diameter of 29″, wide tires 2.9″ provide maximum comfort andadhesion
- telescopic seat post
- powerful Sram DB8 four-piston brakes
- wheels 29″ (size S mullet 29/27.5″)
| Frame | Moterra Neo, SmartForm C1 Alloy, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, injection molded skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, tapered headtube, 18m |
| Fork | RockShox Yari RC, 150mm, 15x110mm Boost, 44mmoffset |
| Engine | Bosch Performance Line CX |
| Control unit | Bosch Kiox |
| Battery | Bosch PowerTube 750Wh |
| Charger | Bosch 4A |
| Cranks | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
| Central composition | 0 |
| Derailleur | 0 |
| Derailleur | ShimanoXT |
| Sorting | Shimano Deore M6100, 12-speed |
| Cassette | Sunrace, 11-51, 12-speed |
| Chain | Shimano Deore 6100, 12-speed |
| Rims | WTB ST i30 TCS, 32h, tubeless ready |
| Coats | (F) Maxxis Minion DHF, 29 x 2.6″, EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6″ (27.5×2.6″ – size Small), EXO, tubeless ready |
| Bullets | (F) Formula 15x110mm thru-axle / (R)Shimano MT410, 12x148mm thru-axle |
| Wires | Stainless Steel, 14g |
| Brakes | Sram DB8 4-piston hydraulic disc, 200/200mm rotors |
| Brake levers | Sram DB8 hydraulic disc |
| Handlebars | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 0° |
| Flu | FabricFunGuy |
| Head composition | Integrated Sealed Bearing, Tapered |
| Seat | WTB, steel rails |
| Seat post | TranzX dropper, internal routing, 31.6, 130mm (S), 150mm (M-XL) |
| Platform | MOTERRA ALU 29 BOSCH G1 |
| Silencer | RockShox Deluxe Select, DebonAir, 2-Pos mode adjust, adjustable rebound |
