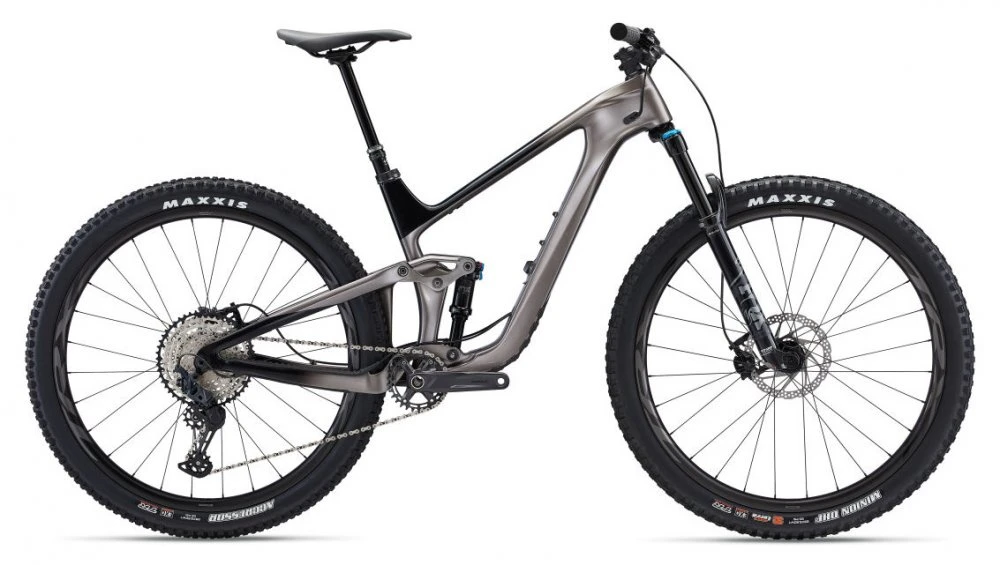

The Giant Trance Advanced 29 is the ideal partner for playful trails, singletracks, but also all-day wandering through the terrain. It pushes the label “universal trail bike” to completely different dimensions and is addictively fun.
Thanks to the flip chip inserts located in the upper suspension rocker arm, you can easily adjust the wheel geometry for your riding style or the terrain you ride most often. While the setting to the Low position (head angle 65.5°, saddle angle 76.3°) is ideal for more difficult terrain, the setting to the High position creates more of an XCoriented driving position (angles 66.2°/77°).
- travel 130 mm front, 120 mm rear
- the frame, including the rear structure, is carbon, hand-made from Advanced Composite material
- the Maestro suspension system is sensitive to bumps without unwanted rocking when pedaling
- metric standard shock absorber with Trunnion Mount
- one-piece carbon rocker arm
- boost fixed axes 15×110 mm / 12×148 mm
- internal bowden line and rear brake hose
- ISCG05chain tensioner bracket
| FRAME | |
| Frame: Fork: Silencer: | Advanced-Grade Composite front and rear triangles, 120mm Maestro suspension, flip chip, 12x148mm thru-axle Fox 34 Float Rhythm, 130mm, GRIP damper, Boost 15×110 Kabolt, 44mm offset, custom tuned for Giant Fox Float DPS Performance, 185/50, custom tuned for Giant |
| Handlebars: Stem: Seat post: Seat: Pedals: | Giant Contact TR35, 780x35mm Giant Contact SL 35 TranzX travel-adjustable dropper, 30.9 mm Giant Romero SL – |
| DRIVE | |
| Sorting: Derailleur: Derailleur: Brakes: Brake levers: Cassette: Chain: Center axis: | Shimano SLX SL-M7100, 1×12 – Shimano SLX RD-M7100 Shimano Deore XT BR-M6120 Shimano Deore BL-M6100 Shimano SLX, 10×51 KMC X-12 Shimano MT512-1 Shimano, press fit |
| BIKES | |
| Rims: Charges: Wires: Coats: | Giant TRX 2 Carbon 29 WheelSystem Giant TRX 2 Carbon 29 WheelSystem Maxxis Minion DHF 29×2.5 WT, 3C MaxxTerra, EXO, TR Maxxis Aggressor 29×2.5, EXO, TR |
